Wavecor
SW312TU02   12¼” alu-cone automotive subwoofer, 4 ohm

2” voice coil diameter and 145mm magnet for better control and efficiency.

Two field-stabilizing alu rings reducing magnetic field variations at higher power levels.

Black plated magnet parts.

Black alu cone.

Vented voice coil former. venter frame, vented cone neck.

Long-linear-stroke motor

Heavy-duty black fiber glass voice coil bobbin.

SW312TU02-front-view
WF165TU01-SPL

Nominal impedance

4

ohm

Recommended max. upper frequency limit

300

Hz

Sensitivity, 2.83V/1m (average SPL in range 100 - 3,000Hz)

90

dB

Power handling, continuous, IEC 268-5, without enclosure

250

W

Voice coil resistance, RDC

3.2

ohm

Effective radiating area, Sd

513

sq.cm

Resonance frequency (free air, no baffle), Fs

27.5

Hz

Moving mass, incl. air (free air, no baffle), Mms

194

g

Force factor, Bxl

14.3

N/A

Equivalent air volume, Vas

65

lit.

Mechanical Q, Qms

11.5

-

Electrical Q, Qes

0.53

-

Total Q, Qts

0.50

-

Theoretical linear motor stroke, Xmax

+/-11.5

mm

Specifications are before burn-in

Downloads
Impedance response curve as text file

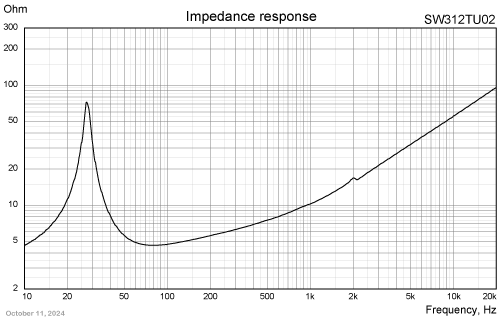

SW312TU02 impedance response

SW312TU02 impedance response

Important!
Please observe that the text files for download are actual measurements of the drivers measured in an “infinite” baffle, without any enclosure. Measuring the drivers in a finite baffle (like the baffle of most speaker cabinets) or in any size of enclosure will lead to different response curves.

PACKAGING AND ORDERING INFORMATION

Part no. SW312TU02-01:

One piece, retail packaging (packaged one piece per white box)

Latest update: October 12, 2024



Specifications are subject to change without any further notice.
Copyright © by Wavecor Ltd., China. All rights reserved.
