TW022WA06     22 mm textile tweeter, ferro fluid, low resonance, 4 ohm













TW022WA06 is a tweeter designed for applications requiring the highest level of performance and most extended and linear high frequency response.

Innovation
Tweeters used to feature a separate rear chamber in order to obtain low resonance frequency. Not any longer. By designing the internal parts to accommodate new larger internal volumes, the TW022WA06 offers an unusually low  resonance frequency.
The design with 22 mm voice coil and wide surround caters for both applications that would normally require traditional 3/4” tweeters and those, where 1” tweeters would usually be used.

FEATURES

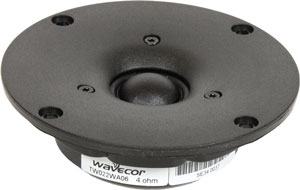

TW022WA06 photo

Frequency resp.
Downloads
Specifications
Harmonic distortion
Dimensions
Ordering info

  • 22 mm design for optimal compromise between on- and off-axis frequency response, resonance frequency, and power handling
  • Internal volumes for low resonance frequency and distortion
  • Precision-coated textile diaphragm for improved consistency and high-frequency extension
  • Optimized dome shape for ultra high frequency cutoff
  • Vented voice coil former for reduced distortion and compression
  • Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
  • Build-in cavities under dome/edge to equalize pressure for lower distortion and lower resonance frequency
  • Light high-stability ferro fluid for increased power handling
  • Flexible lead wires for higher power handling and larger excursion
  • Gold plated terminals to prevent oxidation and ensure long-term reliable connection
  • Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing

FREQUENCY RESPONSE

TW022WA06-SPL-response

Measuring conditions, SPL
Driver mounting: Flush in infinite baffle
Microphone distance: 1.0 m
Input level: 2.83 VRMS
Smoothing: 1/6 oct.

IMPEDANCE RESPONSE

TW022WA06-imp-response

Measuring conditions, impedance
Driver mounting: Free air, no baffle
Input signal: Stepped sine wave, semi-current-drive, nominal current 2 mA
Smoothing: None

Downloads
SPL and impedance response curves as text files

TW022WA06 SPL

TW022WA06 SPL response

TW022WA06 impedance

TW022WA06 impedance response

Important!
Please observe that these text files for download are actual measurements of the drivers measured in infinite baffle and without any enclosure. Measuring the drivers in a finite baffle (like the baffle of most speaker cabinets) and in any size of enclosure will lead to different response curves.

NOMINAL SPECIFICATIONS

Notes

  Parameter

Value

Unit



Nominal size

22

[mm]



Nominal impedance

4

[ohm]



Recommended frequency range

2 - 25

[kHz]

1, 4

Sensitivity, 2.83V/1m (average SPL in range 2.5 - 20 kHz)

91

[dB]

2

Power handling, short term, IEC 268-5, 2 kHz@12dB/oct.



[W]

2

Power handling, long term, IEC 268-5, 2 kHz@12dB/oct.

150

[W]

2

Power handling, continuous, IEC 268-5, 2 kHz@12dB/oct.

40

[W]

6

Effective radiating area, Sd

6.1

[sq.cm]

3, 4

Resonance frequency (free air, no baffle), Fs

795

[Hz]

7

Moving mass, incl. air (free air, no baffle), Mms

0.29

[g]

3

Force factor, Bxl

1.8

[N/A]

3, 4

Suspension compliance, Cms

0.14

[mm/N]

3, 4

Equivalent air volume, Vas

0.0073

[lit]

3, 4

Mechanical resistance, Rms

0.71

[Ns/m]

3, 4

Mechanical Q, Qms

2.0

[-]

3, 4

Electrical Q, Qes

1.58

[-]

3, 4

Total Q, Qts

0.89

[-]

4

Voice coil resistance, RDC

3.7

[ohm]

5

Voice coil inductance, Le (measured at 20 kHz)

36

[μH]



Voice coil inside diameter

22

[mm]



Voice coil winding height

1.8

[mm]



Air gap height

2.5

[mm]



Theoretical linear motor stroke, Xmax

+/-0.35

[mm]



Magnet weight

140

[g]



Total unit net weight excl. packaging

0.35

[kg]

3, 5

Krm

0.0083

[mohm]

3, 5

Erm

1.03

[-]

3, 5

Kxm

1.04

[mH]

3, 5

Exm

0.67

[-]

Note 1

Measured in infinite baffle.

Note 2

Tested in free air (no baffle)

Note 3

Measured using a semi-constant current source, nominal level 2 mA.

Note 4

Measured at 25 deg. C

Note 5

It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.

Note 6

Calculated as the area inside the middle of the surround.

Note 7

Determined by physical weighing of the moving parts including the inner half of the surround.

HARMONIC DISTORTION

TW022WA06-Harmonic-distortion

Measuring conditions, harmonic distortion
Driver mounting: In infinite baffle
Microphone distance: 0.5 m
Input signal: Stepped sine wave, 2.0 VRMS
Smoothing: 1/6 oct.

OUTLINE DRAWING AND NOMINAL DIMENSIONS (mm)

TW022WA06 outline drawing
TW022WA06-outline-drawing

TERMINAL NOMINAL DIMENSIONS (mm)

TW022WA05_06-terminals

Thickness, both terminals: 0.5 mm
Terminal plating: Gold

PACKAGING AND ORDERING INFORMATION

Part no. TW022WA06-01

Individual packaging (one piece per box)

Part no. TW022WA06-02

Bulk packaging

Latest update: June 28, 2022



Specifications are subject to change without any further notice.
Copyright © 2006-2022 by Wavecor Ltd., China. All rights reserved.
