Wavecor

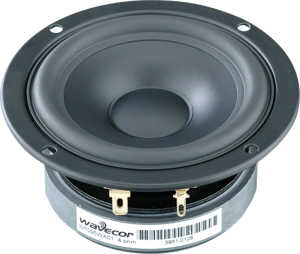

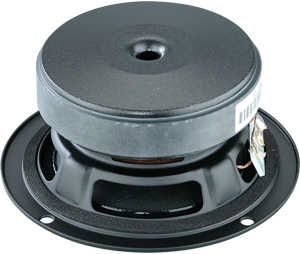

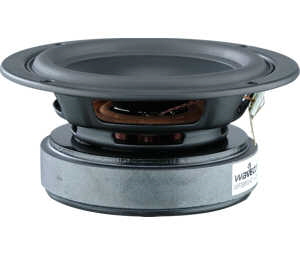

WF095WA01/02     3 paper cone mid/woofer, 4/8 ohm













The  3.75" transducers WF095WA01 (4 ohm) and WF095WA02 (8 ohm) were designed especially for high quality multimedia and lifestyle speakers, where small size is required while still obtaining sound reproduction without compromises.
Built in a stamped steel frame, high performance is obtained without paying a high cost premium.

Frequency resp.
Downloads
Specifications
Harmonic distortion
Dimensions
Ordering info

FEATURES

  • Vented voice coil former for reduced distortion and compression
  • Vented chassis for lower air flow speed reducing audible distortion
  • Voice coil wound with Copper Clad Aluminium Wire for higher efficiency and better dynamics
  • Heavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level details
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black magnet parts for better heat transfer to increase power handling
  • Progressive suspension with specially designed CONEX damper (spider) for long durability under extreme operating conditions
  • Gold plated terminals to prevent oxidation for long-term reliable connection
  • Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing

FREQUENCY RESPONSE

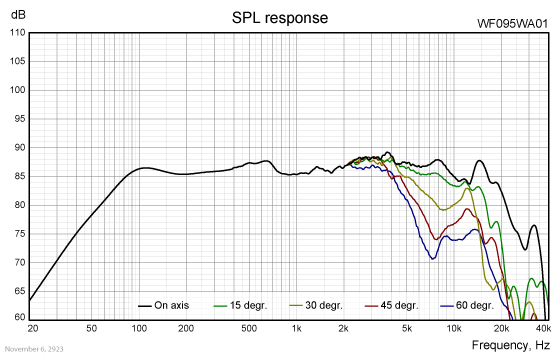

WF095WA01 SPL response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS LogChirp, 64k, Hanning/2
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

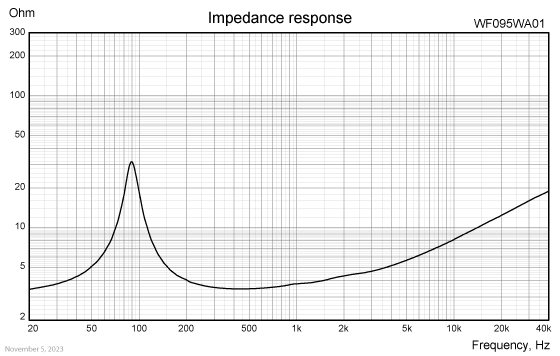

WF095WA01 impedance response

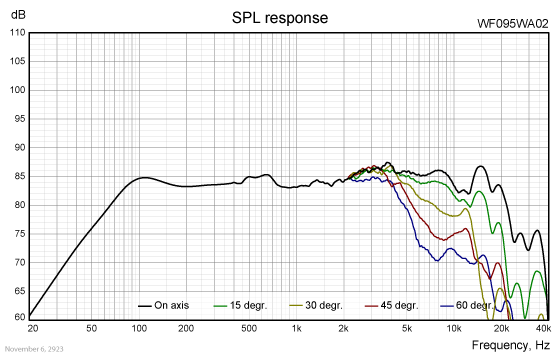

WF095WA02 SPL response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS LogChirp, 64k, Hanning/2
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

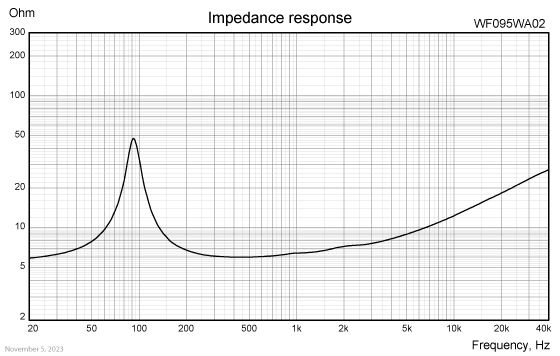

WF095WA02 impedance response

Downloads
SPL and impedance response curves as text files

WF095W01 SPL response

WF095W01 SPL response

WF095WA01 impedance response

WF095W01 impedance response

WF095W02 SPL response

WF095W02 SPL response

WF095W02 impedance response

WF095W02 impedance response

Important!
Please observe that these text files for download are actual measurements of the drivers measured in infinite baffle and without any enclosure. Measuring the drivers in a finite baffle (like the baffle of most speaker cabinets) and in any size of enclosure will lead to different response curves.

NOMINAL SPECIFICATIONS

Notes

  Parameter

WF095WA01

WF095WA02

Unit

Before burn-in

After burn-in

Before burn-in

After burn-in



Nominal size

3.75

3.75

[inch.]



Nominal impedance

4

8

[ohm]



Recommended max. upper frequency limit

5

5

[kHz]

1, 4

Sensitivity, 2.83V/1m (average SPL in range 100 - 5,000 Hz)

86.5

84.5

[dB]

2, 4

Power handling, short term, IEC 268-5, no additional filtering

40

40

[W]

2, 4

Power handling, long term, IEC 268-5, no additional filtering

25

25

[W]

2, 4

Power handling, continuous, IEC 268-5, no additional filtering

10

10

[W]



Effective radiating area, Sd

35

35

[sq.cm]

3, 4, 6

Resonance frequency (free air, no baffle), Fs

89

86

91

88

[Hz]



Moving mass, incl. air (free air, no baffle), Mms

3.6

3.5

[g]

3, 4

Force factor, Bxl

3.0

3.6

[N/A]

3, 4, 6

Suspension compliance, Cms

0.87

0.94

0.87

0.94

[mm/N]

3, 4, 6

Equivalent air volume, Vas

1.5

1.6

1.5

1.6

[lit.]

3, 4, 6

Mechanical resistance, Rms

0.30

0.30

0.30

0.30

[Ns/m]

3, 4, 6

Mechanical Q, Qms

6.8

6.6

6.6

6.5

[-]

3, 4, 6

Electrical Q, Qes

0.71

0.69

0.90

0.86

[-]

3, 4, 6

Total Q, Qts

0.64

0.62

0.79

0.76

[-]

4

Voice coil resistance, RDC

3.1

5.6

[ohm]

5

Voice coil inductance, Le (measured at 10 kHz)





[mH]



Voice coil inside diameter

22

22

[mm]



Voice coil winding height

8.4

8.4

[mm]



Air gap height

3

3

[mm]



Theoretical linear motor stroke, Xmax

+/-2.7

+/-2.7

[mm]



Magnet weight

184

184

[g]



Total unit net weight excl. packaging

0.47

0.47

[kg]

3, 4, 5

Krm





[mohm]

3, 4, 5

Erm





[-]

3, 4, 5

Kxm





[mH]

3, 4, 5

Exm





[-]

Note 1

Measured in infinite baffle.

Note 2

Tested in free air (no cabinet).

Note 3

Measured using a semi-constant current source, nominal level 2 mA.

Note 4

Measured at 25 deg. C

Note 5





It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.

Note 6



After-burn-in specifications are measured at least 12 hours after exciting the transducer by a sine wave at the frequency of Fs for 2 hours at level 4/5 VRMS (4/8 ohm version). The unit is not burned in before shipping.


HARMONIC DISTORTION

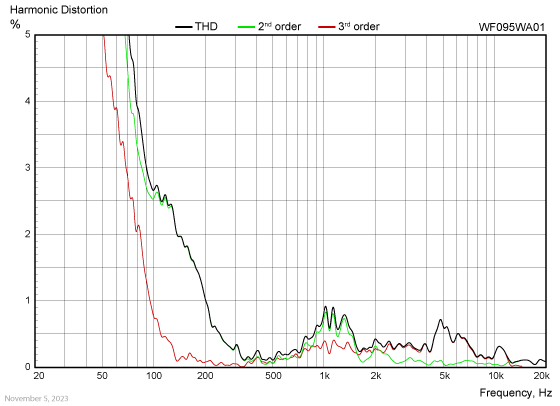

WF095WA01 harmonic distortion

Measuring conditions, harmonic distortion
Driver mounting: In sealed enclosure, internal volume 1 lit.,
Microphone distance: 0.5 m
Input signal: Stepped sine wave, 2.0 V (WF095WA01) / 2.7 V (WF095WA02)
Smoothing: 1/12 oct.

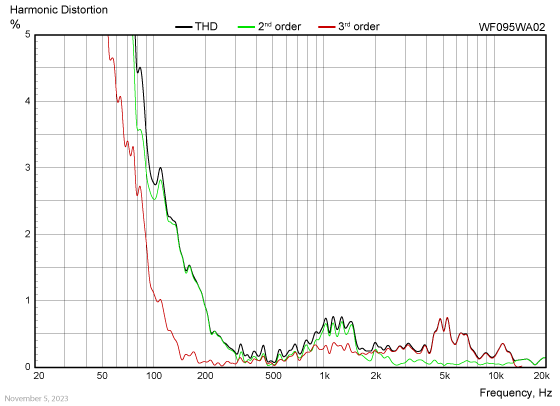

WF095WA02 harmonic distortion

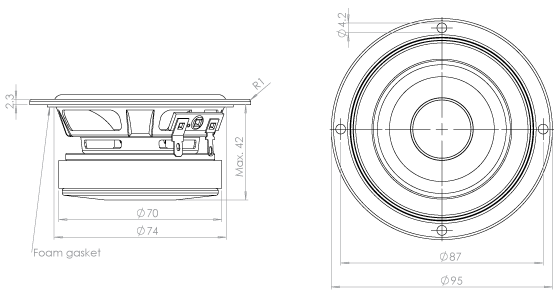

OUTLINE DRAWING AND NOMINAL DIMENSIONS (mm)

WF095WA01/02 outline drawing
WF095WA01/02 dimensions

TERMINAL NOMINAL DIMENSIONS (mm)

Terminal dimensions

PACKAGING AND ORDERING INFORMATION

Part no. WF095WA01-01

4 ohm version, round, individual packaging (one piece per box)

Part no. WF095WA01-02

4 ohm version, round, bulk packaging

Part no. WF095WA02-01

8 ohm version, round, individual packaging (one piece per box)

Part no. WF095WA02-02

8 ohm version, round, bulk packaging

Latest update: Nov. 8, 2023



Specifications are subject to change without any further notice.
Copyright © 2006-2023 by Wavecor Ltd., China. All rights reserved.
