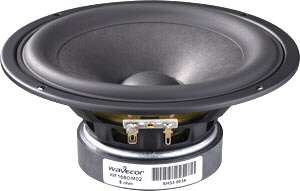

WF168OM01/02     6½” paper cone mid/woofer, 4/8 ohm









WF168OM01 (4 ohm) and WF168OM02 (8 ohm) are mid/woofers designed for demanding bass and midrange applications. They work equally well for hi-fi, high quality home theater systems, multimedia setups, or high quality personal audio systems.

Frequency resp.
Specifications
Dimensions
Ordering info

Wavecor Balanced Drive Technology
oem-line-logo-110px

FEATURES

WF168OM01_02
  • FEA optimized suspension for perfect symmetry, reducing even order harmonic distortion
  • Balanced Drive motor with perfect force factor symmetry for reduced distortion
  • Vented voice coil former for reduced distortion and compression
  • Vented chassis for lower air flow speed reducing audible distortion
  • Heavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level details
  • Progressive suspension with optimized compromise between linearity and soft clipping
  • New damper (spider) woven of a mix of polymers and natural fibers for improved durability
  • Gold plated terminals to prevent oxidation for long-term reliable connection
  • Delivered with foam gasket attached to the frame for hassle-free mounting and secure enclosure sealing

FREQUENCY RESPONSE

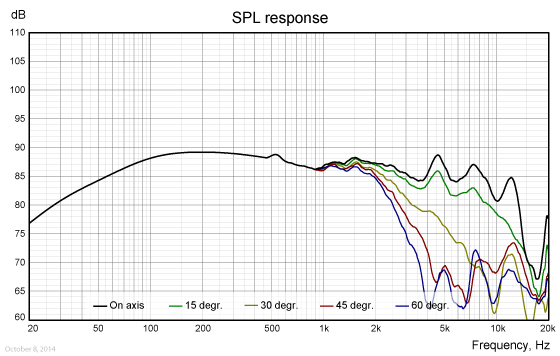

WF168OM01-freq.-response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS stepped sine wave
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

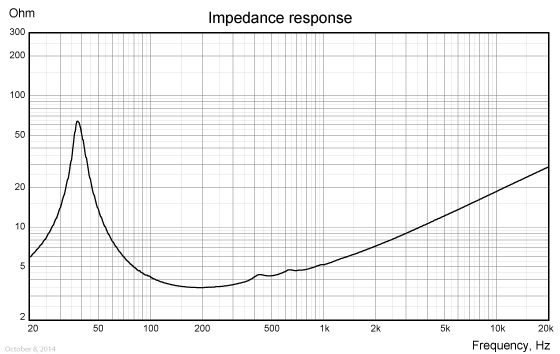

WF168OM01-impedance

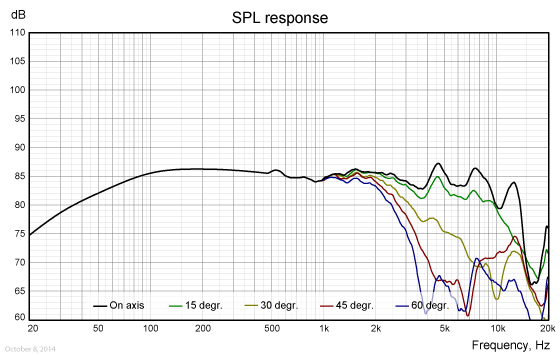

WF168OM02-freq.-response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS stepped sine wave
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

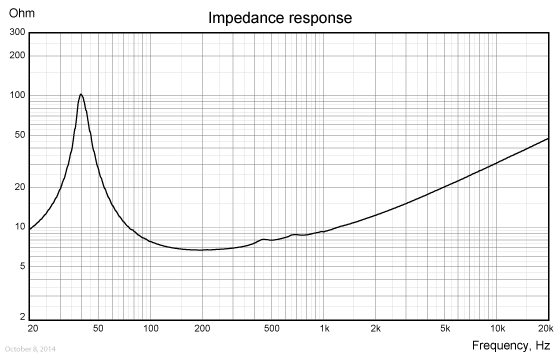

WF168OM02-impedance

NOMINAL SPECIFICATIONS

Notes

  Parameter

WF168OM01

WF168OM02

Unit

Before burn-in

After burn-in

Before burn-in

After burn-in



Nominal size

6.5

6.5

[inch.]



Nominal impedance

4

8

[ohm]



Recommended max. upper frequency limit

3

3

[kHz]

1, 3

Sensitivity, 2.83V/1m (average 300-3,000Hz)

88

85.5

[dB]

2

Power handling, short term, IEC 268-5, no additional filtering





[W]

2

Power handling, long term, IEC 268-5, no additional filtering





[W]

2

Power handling, continuous, IEC 268-5, no additional filtering

55 (65)

55 (65)

[W]



Effective radiating area, Sd

131

131

[sq.cm]

3, 6

Resonance frequency (free air, no baffle), Fs

39



40



[Hz]



Moving mass, incl. air (free air, no baffle), Mms

13.8

12.9

[g]

3

Force factor, Bxl

4.8

6.0

[N/A]

3, 6

Suspension compliance, Cms

1.21



1.21



[mm/N]

3, 6

Equivalent air volume, Vas

29.5



29.5



[lit.]

3, 6

Mechanical resistance, Rms

0.39



0.39



[Ns/m]

3, 6

Mechanical Q, Qms

8.7



8.4



[-]

3, 6

Electrical Q, Qes

0.47



0.57



[-]

3, 6

Total Q, Qts

0.45



0.54



[-]

4

Voice coil resistance, RDC

3.2

6.3

[ohm]

5

Voice coil inductance, Le (measured at 10 kHz)

0.30

0.48

[mH]



Voice coil inside diameter

32

32

[mm]



Voice coil winding height

12.4

12.4

[mm]



Air gap height

4

4

[mm]



Theoretical linear motor stroke, Xmax

+/-4.2

+/-4.2

[mm]



Magnet weight





[g]



Total unit net weight excl. packaging





[kg]

3, 5

Krm

0.60

0.84

[mohm]

3, 5

Erm

0.88

0.90

[-]

3, 5

Kxm

12.1

18.4

[mH]

3, 5

Exm

0.63

0.64

[-]

Note 1

Measured in infinite baffle.

Note 2

Tested in free air (no cabinet).

Note 3

Measured using a semi-constant current source, nominal level 2 mA.

Note 4

Measured at 20 deg. C

Note 5





It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.

Note 6



After burn-in specifications are measured 12 hours after exiting the transducer by a 20 Hz sine wave for 2 hours at level 10/14.1 VRMS (4/8 ohm version). The unit is not burned in before shipping.

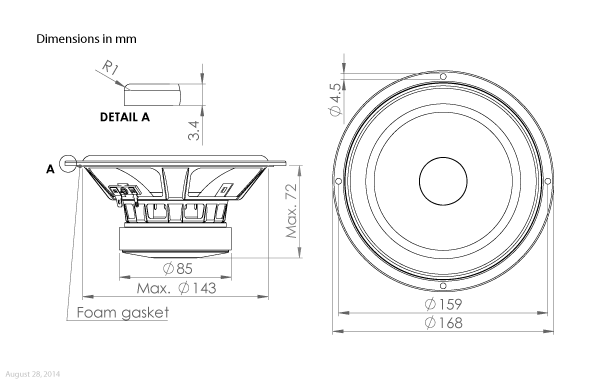

OUTLINE DRAWING AND NOMINAL DIMENSIONS

WF168OM01 and -02 outline drawing
WF168OM01-02_outline_drawing

TERMINAL NOMINAL DIMENSIONS (mm)

Terminals-dimensions

PACKAGING AND ORDERING INFORMATION

Part no. WF168OM01-01

4 ohm version, bulk packaging

Part no. WF168OM02-01

8 ohm version, bulk packaging

Latest update: November 11, 2015



Specifications are subject to change without any further notice.
