WF223BD01/02     8 die cast, paper/glass fibre cone mid/woofers













Frequency resp.
Specifications
Dimensions
Distortion
Decay spectrum
Ordering info

Wavecor Balanced Drive Technology

The 8” transducers WF223BD01 (4 ohm) and WF223BD02 (8 ohm) were designed as high performance bass/midrange units for  monitors and high-end hi-fi speakers. They offer outstanding deep bass performance and dynamic and detailed midrange.
Ideal for 3-way constructions they additionally offer designers the rare opportunity of working with 8” 2-way solutions if paired with a suitable tweeter like for instance some of the Wavecor 30 mm units.

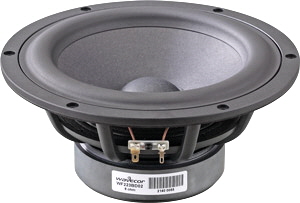

WF223BD01_02_300pxs

Download
SPL and impedance response curves as text files

Notepad-logo

WF223BD01 SPL response

Notepad-logo

WF223BD01 impedance response

Notepad-logo

WF223BD02 SPL response

Notepad-logo

WF223BD02 impedance response

Important!
Please observe that these text files for download are actual measurements of the drivers measured in infinite baffle and without any enclosure. Measuring the drivers in a finite baffle (like the baffle of most speaker cabinets) and in any size of enclosure will lead to different response curves.

FEATURES

  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
  • Cone made of a new paper/glass fiber mix with improved consistency and stability
  • Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
  • Vented voice coil former for reduced distortion and compression
  • Vented center pole with dual flares for reduced noise level and compressions at large cone excursions
  • Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor with 1” voice coil diameter for better control and power handling
  • Built-in alu field-stabilizing ring for reduced distortion at high levels
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black plated motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions
  • Gold plated terminals to ensure long-term trouble free connection

FREQUENCY RESPONSE

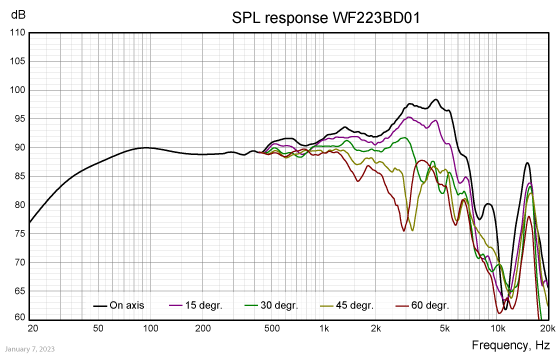

WF223BD01-SPL-response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS stepped sine wave
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

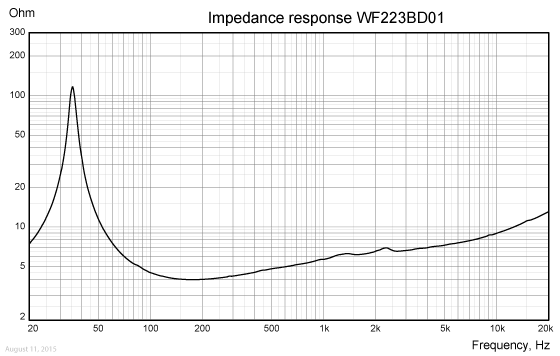

WF223BD01-imp-response

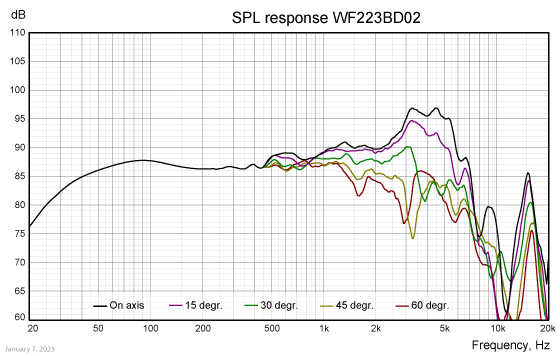

WF223BD02-SPL-response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS stepped sine wave
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

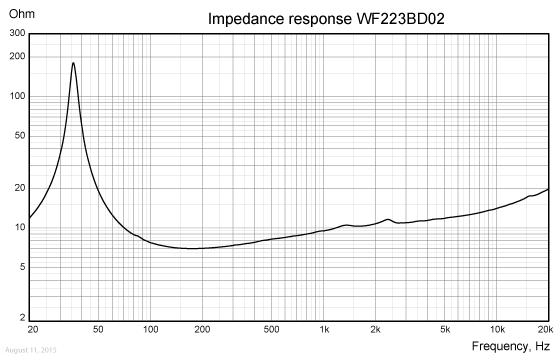

WF223BD02-imp-response

NOMINAL SPECIFICATIONS

Notes

  Parameter

WF223BD01

WF223BD02

Unit

Before burn-in

After burn-in

Before burn-in

After burn-in



Nominal size

8

8

[inch.]



Nominal impedance

4

8

[ohm]



Recommended max. upper frequency limit

2

2

[kHz]

1, 4

Sensitivity, 2.83V/1m (average SPL in range 200 - 1,000 Hz)

89.5

86.5

[dB]

2, 4

Power handling, short term, IEC 268-5, no additional filtering

1,200

1,200

[W]

2, 4

Power handling, long term, IEC 268-5, no additional filtering

300

300

[W]

2

Power handling, continuous, IEC 268-5, no additional filtering

150

150

[W]



Effective radiating area, Sd

213

213

[sq.cm]

3, 4, 6

Resonance frequency (free air, no baffle), Fs

32.6



33.1



[Hz]



Moving mass, incl. air (free air, no baffle), Mms

34

33

[g]

3, 4

Force factor, Bxl

7.7

9.5

[N/A]

3, 4, 6

Suspension compliance, Cms

0.70



0.70



[mm/N]

3, 4, 6

Equivalent air volume, Vas

45



45



[lit.]

3, 4, 6

Mechanical resistance, Rms

0.48



0.48



[Ns/m]

3, 4, 6

Mechanical Q, Qms

14.5



14.3



[-]

3, 4, 6

Electrical Q, Qes

0.40



0.47



[-]

3, 4, 6

Total Q, Qts

0.39



0.46



[-]

4

Voice coil resistance, RDC

3.4

6.2

[ohm]

5

Voice coil inductance, Le (measured at 10 kHz)

0.13

0.20

[mH]



Voice coil inside diameter

39

39

[mm]



Voice coil winding height

18

18

[mm]



Air gap height

5

5

[mm]



Theoretical linear motor stroke, Xmax

6.5

6.5

[mm]



Magnet weight





[g]



Total unit net weight excl. packaging

2.5

2.5

[kg]

3, 4, 5

Krm





[mohm]

3, 4, 5

Erm





[-]

3, 4, 5

Kxm





[mH]

3, 4, 5

Exm





[-]

Note 1

Measured in infinite baffle.

Note 2

Tested in free air (no cabinet).

Note 3

Measured using a semi-constant current source, nominal level 2 mA.

Note 4

Measured at 25 deg. C

Note 5

It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.

Note 6

After burn-in specifications are measured 12 hours after exiting the transducer by a 20 Hz sine wave for 2 hours at level 10/14.1 VRMS (4/8 ohm version). The unit is not burned in before shipping.

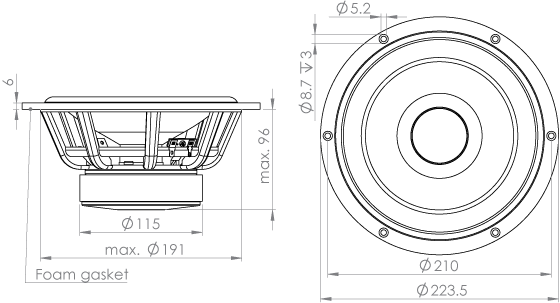

OUTLINE DRAWING AND NOMINAL DIMENSIONS (mm)

WF223BD01/02 outline drawing
WF223BD01_02 outline drawing

TERMINAL NOMINAL DIMENSIONS (mm)

Terminals-dimensions

HARMONIC DISTORTION

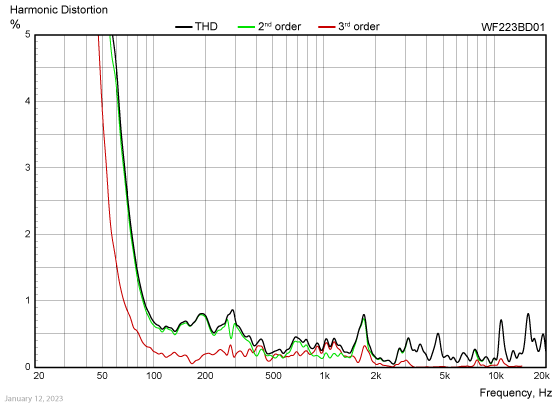

WF223BD01-harmonic-distortion

Measuring conditions
Driver mounting: Flush in infinite baffle, back side open (no cabinet)
SPL level for performing distortion measurements: 94 dB / 1m
Smoothing, SPL curve: 1/6 oct.
Smoothing, distortion curves: 1/12 oct.

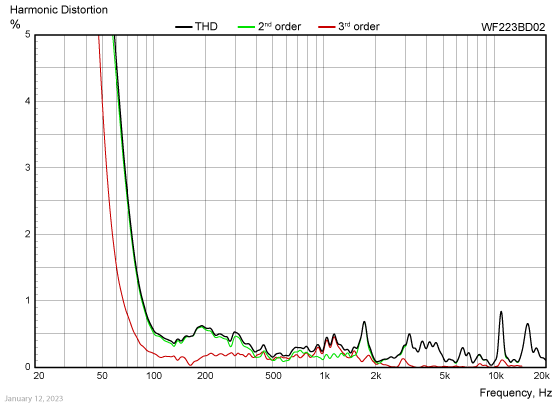

WF223BD02-harmonic-distortion

CUMULATIVE DECAY SPECTRUM

WF223BD01-CDS

Measuring conditions
Driver mounting: Flush in infinite baffle, back side open (no cabinet)
Smoothing: 1/6 oct.
Frequency domain converted to time domain (impulse response) by inverse FFT. 4 and 8 ohm versions normalized to same level for direct comparison of the decay plots.

WF223BD02-CDS

PACKAGING AND ORDERING INFORMATION

Part no. WF223BD01-01

4 ohm version, individual packaging (one piece per box)

Part no. WF223BD02-01

8 ohm version, individual packaging (one piece per box)

Latest update: April 19, 2018



Specifications are subject to change without any further notice.
Copyright © 2006-2018 by Wavecor Ltd., Guangzhou, China. All rights reserved.
