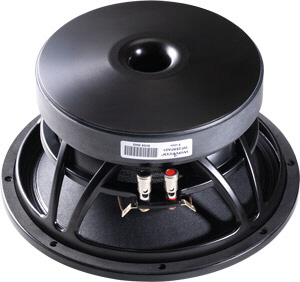

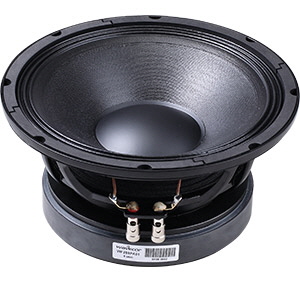

WF259PA01/02   10" die cast frame, paper cone PA mid/woofers, 4/8 ohm











Specifications
Frequency resp
Dimensions
Distortion
Ordering info

Wavecor Balanced Drive Technology

The 10.25” transducers WF259PA01 (8 ohm) and WF259PA02 (4 ohm) were the first products by Wavecor dedicated for Public Address audio systems.
They merge the well-known audiophile sound qualities of a typical Wavecor transducer with the common virtues of PA transducers with high sensitivity, high power handling, low distortion, and true-to-the-source sound reproduction.

Downloads
SPL and impedance response curves as text files

WF259PA01 SPL response

WF259PA02 SPL response

WF259PA01 impedance response

WF259PA02 impedance response

WF259PA01 SPL response

WF259PA01 SPL response

WF259PA01 impedance response

WF259PA01 impedance response

Important!
Please observe that these text files for download are actual measurements of the drivers measured in infinite baffle and without any enclosure. Measuring the drivers in a finite baffle (like the baffle of most speaker cabinets) and in any size of enclosure will lead to different response curves.

FEATURES

  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Alu shorting ring on center pole below and above air gap to reduce voice coil induction, reduce variation of voice coil induction as a function of voice coil position, and reduce flux variation induced by voice coil current. All with the purpose of reducing large-signal distortion
  • Large motor with 3” voice coil diameter for better control and power handling
  • Cone made of light and stiff paper formula for high efficiency and uncoloured sound
  • Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
  • Vented voice coil former for reduced distortion and compression
  • Vented center pole with dual flares for reduced noise level and compression at large cone excursions
  • Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black plated motor parts for better heat transfer to the surrounding air
  • Conex spider for better long-term stability and better durability under extreme conditions

NOMINAL SPECIFICATIONS

Notes

  Parameter

WF259PA02

WF259PA01

Unit

Before burn-in

After burn-in

Before burn-in

After burn-in



Nominal size

10.25

10.25

[inch.]



Nominal impedance

4

8

[ohm]



Recommended max. upper frequency limit

2

2

[kHz]

1, 4

Sensitivity, 2.83V/1m (calculated from T/S parameters)

97

92.5

[dB]

2, 4

Power handling, short term, IEC 268-5, no additional filtering

1,100

1,100

[W]

2, 4

Power handling, long term, IEC 268-5, no additional filtering

450

450

[W]

2

Power handling, continuous, IEC 268-5, no additional filtering

300

300

[W]



Effective radiating area, Sd

370

370

[sq.cm]

3, 4, 6

Resonance frequency (free air, no baffle), Fs

54

52

55

53

[Hz]



Moving mass, incl. air (free air, no baffle), Mms

55

53

[g]

3, 4

Force factor, Bxl

14.1

16.8

[N/A]

3, 4, 6

Suspension compliance, Cms

0.16

0.17

0.16

0.17

[mm/N]

3, 4, 6

Equivalent air volume, Vas

31

33

31

33

[lit.]

3, 4, 6

Mechanical resistance, Rms

1.32

1.32

1.32

1.32

[Ns/m]

3, 4, 6

Mechanical Q, Qms

14

13.6

13.8

13.4

[-]

3, 4, 6

Electrical Q, Qes

0.29

0.28

0.36

0.35

[-]

3, 4, 6

Total Q, Qts

0.29

0.28

0.35

0.34

[-]

4

Voice coil resistance, RDC

3.1

5.6

[ohm]

5

Voice coil inductance, Le (measured at 10 kHz)





[mH]



Voice coil inside diameter

76

76

[mm]



Voice coil winding height

17

17

[mm]



Air gap height

8

8

[mm]



Theoretical linear motor stroke, Xmax

+/-4.5

+/-4.5

[mm]



Magnet weight

2.75

2.75

[kg]



Total unit net weight excl. packaging

7.3

7.3

[kg]

3, 4, 5

Krm





[mohm]

3, 4, 5

Erm





[-]

3, 4, 5

Kxm





[mohm]

3, 4, 5

Exm





[-]

Note 1

Measured in infinite baffle.

Note 2

Tested in free air (no cabinet).

Note 3

Measured using a semi-constant current source, nominal level 2 mA.

Note 4

Measured at 25 deg. C

Note 5

It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.

Note 6

After burn-in specifications are measured 12 hours after exiting the transducer by a 20 Hz sine wave for 2 hours at level 17/29 VRMS (4/8 ohm version). The unit is not burned in before shipping.

FREQUENCY RESPONSE

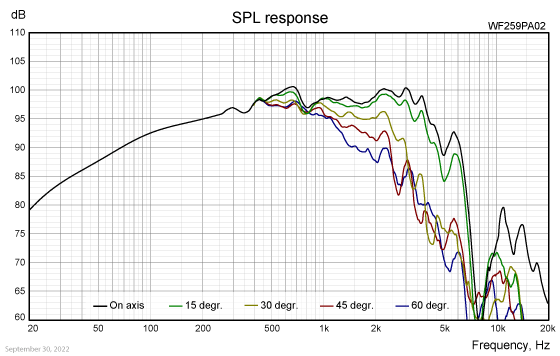

WF259PA02-SPL-response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS LogChirp, 64k, Hanning/2
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

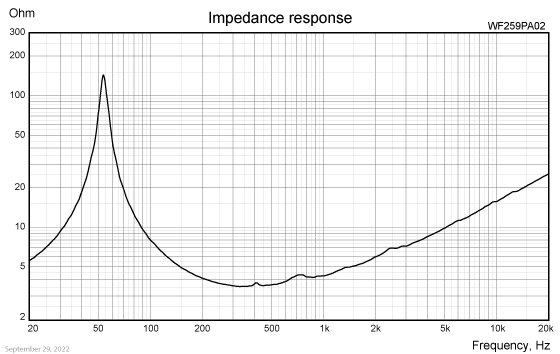

WF259PA02-IMP-response

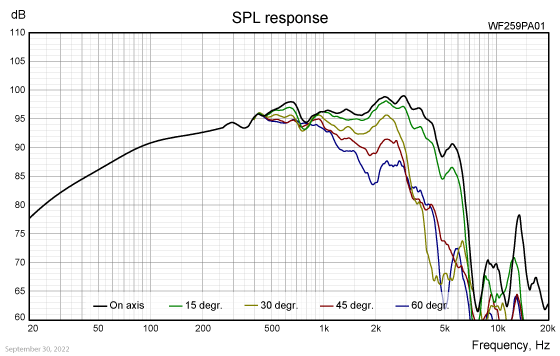

WF259PA01-SPL-response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS LogChirp, 64k, Hanning/2
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

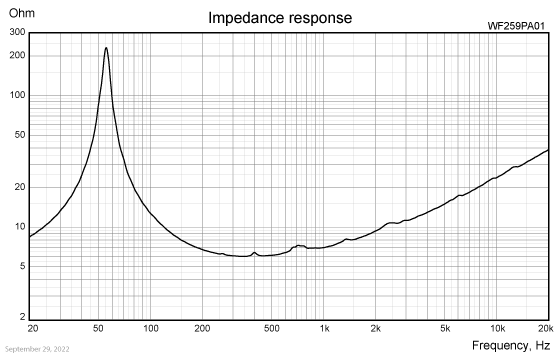

WF259PA01-IMP-response

HARMONIC DISTORTION

WF259PA02-harmonic-distortion

Measuring conditions, harmonic distortion
Driver mounting: In sealed, heavily stuffed enclosure, internal volume 16 lit.,
Microphone distance: 0.5 m
Input signal: Stepped sine wave, 11 VRMS
Smoothing: 1/12 oct.

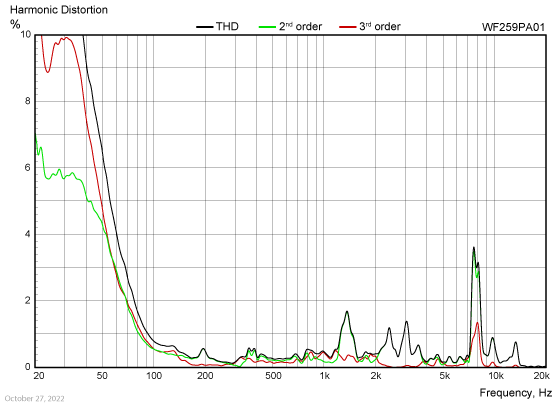

WF259PA01-harmonic-distortion

Measuring conditions, harmonic distortion
Driver mounting: In sealed, heavily stuffed enclosure, internal volume 16 lit.,
Microphone distance: 0.5 m
Input signal: Stepped sine wave, 13.3 VRMS
Smoothing: 1/12 oct.

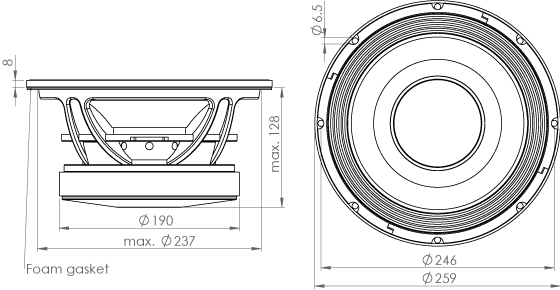

OUTLINE DRAWING AND NOMINAL DIMENSIONS (mm)

WF259PA01/02 outline drawing
WF259PA01-outline-DWG

TERMINAL NOMINAL DIMENSIONS (mm)

SW259WA01/02_terminals

PACKAGING AND ORDERING INFORMATION

Part no. WF259PA02

 4 ohm version, individual packaging (one piece per box)

Part no. WF259PA01

8 ohm version, individual packaging (one piece per box)

Latest update: October 27, 2022




Specifications are subject to change without any further notice.
Copyright © 2006-2022 by Wavecor Ltd., China. All rights reserved.
