SW280WA03/04     11” low profile, alu cone subwoofers, 4/8 ohm











SW280WA03 and SW280WA04 are woofers designed for dedicated sub bass applications. They work equally well for high-
end hi-fi, high quality home theater systems, and top multimedia setups.

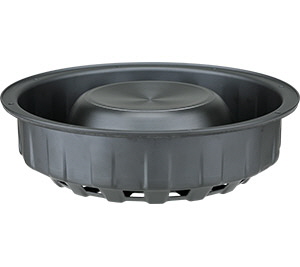

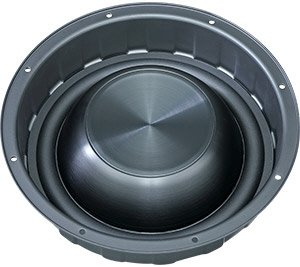

Innovative, very shallow design, with motor structure mounted “inside” the cone.
Recommended for high end audio applications, where build-in depth is limited.
Typical applications are for high performance in-wall and theater systems.

Frequency resp.
Specifications
Dimensions
Ordering info


July 2023
This product has been relaunched, now featuring a rigid alu cone.
Please observe the new specifications.


Downloads
SPL and impedance response curves as text files

SW280WA03_SPL_response

SW280WA03 SPL response

SW280WA03_impedance_response

SW280WA03 impedance response

SW280WA04_SPL_response

SW280WA04 SPL response

SW280WA04_impedance_response

SW280WA04 impedance response

Important!
Please observe that these text files for download are actual measurements of the drivers measured in infinite baffle and without any enclosure. Measuring the drivers in a finite baffle (like the baffle of most speaker cabinets) and in any size of enclosure will lead to different response curves.

FEATURES

  • New innovative design with cone wrapped around the motor structure to reduce overall dept
  • Rigid alu cone to ensure piston motion at high drive levels
  • Venting through holes in spider ring reduced distortion and compression
  • Vented chassis for lower air flow speed reducing audible distortion
  • Internal alu ring for stabilizing the magnetic field leading, to lower high-SPL distortion
  • Vented heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor structure with 1.5” voice coil diameter and 135 mm magnet for better control and efficiency
  • Black-anodized magnet structure steel parts for increased heat dissipation and power handling
  • Long linear stroke motor for reduced distortion at high levels
  • Linear suspension with specially designed CONEX damper (spider) for long durability under extreme operating conditions
  • 4-layer voice coil for increased control and better performance in small volumes

FREQUENCY RESPONSE

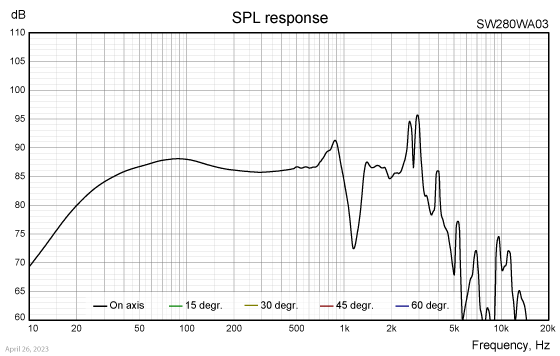

SW280WA03 SPL response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS LogChirp, 64k, Hanning/2
Smoothing: 1/12 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

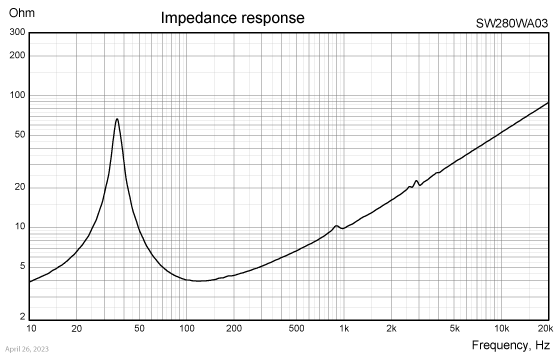

SW280WA03 impedance response

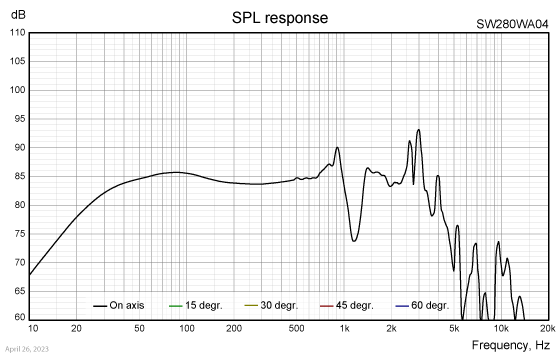

SW280WA04 SPL response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS LogChirp, 64k, Hanning/2
Smoothing: 1/12 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

SW280WA04 impedance response

NOMINAL SPECIFICATIONS

Notes

  Parameter

SW280WA03

SW280WA04

Unit

Before burn-in

After burn-in

Before burn-in

After burn-in



Nominal size

11

11

[inch.]



Nominal impedance

4

8

[ohm]



Recommended max. upper frequency limit

300

300

[Hz]

1, 3

Sensitivity, 2.83V/1m (calculated from T/S parameters)

88.5

85.5

[dB]

2

Power handling, short term, IEC 268-5, no additional filtering

2,000

2.000

[W]

2

Power handling, long term, IEC 268-5, no additional filtering

400

400

[W]

2

Power handling, continuous, IEC 268-5, no additional filtering

200

200

[W]



Effective radiating area, Sd

321

321

[sq.cm]

3, 6

Resonance frequency (free air, no baffle), Fs

34.5

34

35

34.5

[Hz]



Moving mass, incl. air (free air, no baffle), Mms

105

102

[g]

3

Force factor, Bxl

12.5

15.5

[N/A]

3, 6

Suspension compliance, Cms

0.20

0.21

0.20

0.21

[mm/N]

3, 6

Equivalent air volume, Vas

29.7

30.5

29.7

30.6

[lit.]

3, 6

Mechanical resistance, Rms

2.2

2.2

2.2

2.2

[Ns/m]

3, 6

Mechanical Q, Qms

10.3

10.2

10.1

10.1

[-]

3, 6

Electrical Q, Qes

0.48

0.47

0.57

0.57

[-]

3, 6

Total Q, Qts

0.46

0.45

0.54

0.54

[-]

4

Voice coil resistance, RDC

3.3

6.2

[ohm]

5

Voice coil inductance, Le (measured at 1 kHz)





[mH]



Voice coil inside diameter

39

39

[mm]



Voice coil winding height

17

17

[mm]



Air gap height

5

5

[mm]



Theoretical linear motor stroke, Xmax

+/-6

-/_6

[mm]



Magnet weight

1.4

1.4

[kg]



Total unit net weight excl. packaging

3.9

3.9

[kg]

3, 5

Krm





[mohm]

3, 5

Erm





[-]

3, 5

Kxm





[mohm]

3, 5

Exm





[-]

Note 1

Measured in infinite baffle.

Note 2

Tested in free air (no cabinet).

Note 3

Measured using a semi-constant current source, nominal level 2 mA.

Note 4

Measured at 20 deg. C

Note 5





It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.

Note 6


After-burn-in specifications are measured at least 12 hours after exciting the transducer by a sine wave at the frequency of Fs for 2 hours at level 17/19 VRMS (4/8 ohm version). The unit is not burned in before shipping.


HARMONIC DISTORTION

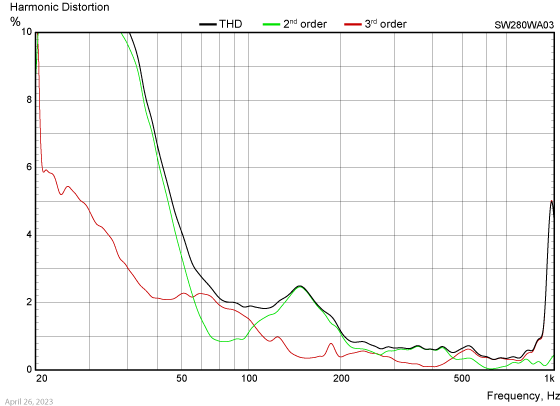

SW280WA03-distortion

Measuring conditions, harmonic distortion
Driver mounting: In sealed enclosure, internal volume 10 lit.,
Microphone distance: 0.5 m
Input signal: Stepped sine wave, 9.3 VRMS (SW280WA03) / 12.3 VRMS (SW280WA04)
Smoothing: 1/12 oct.

SW280WA04-distortion

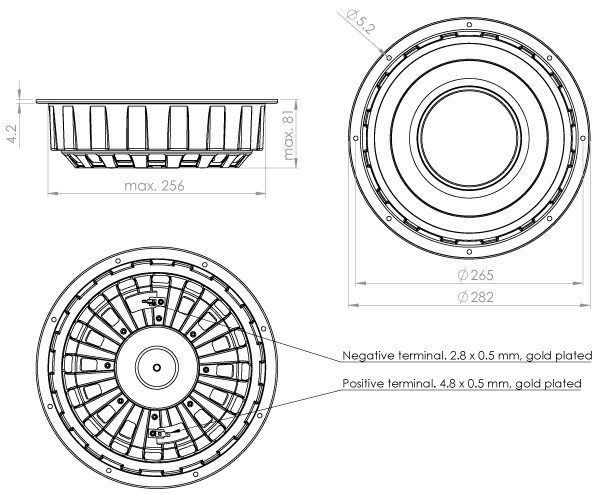

OUTLINE DRAWING AND NOMINAL DIMENSIONS

Dimensions in mm

SW280WA03/04 outline drawing PDF
SW280WA03/04 DWG

PACKAGING AND ORDERING INFORMATION

Part no. SW280WA03-01

4 ohm version, individual packaging (one piece per box)

Part no. SW280WA04-01

8 ohm version, individual packaging (one piece per box)

Latest update: April 26, 2023



Specifications are subject to change without any further notice.
Copyright © by Wavecor Ltd., China. All rights reserved.
