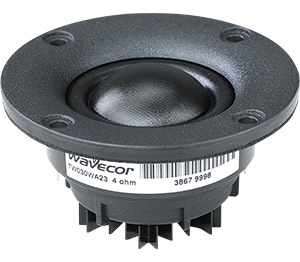

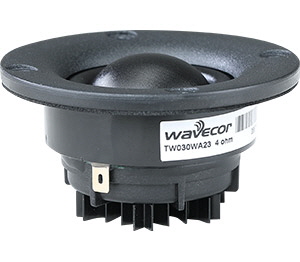

- Graphene reinforced textile dome with increased high-frequency extension, consistency, and temperature rating
- 30 mm voice coil design with high power handling, and low resonance frequency
- Copper clad center pole yielding very low voice coil inductance for reduced distortion and increased high frequency output
- Vented through to a damped rear chamber for low resonance frequency and low distortion

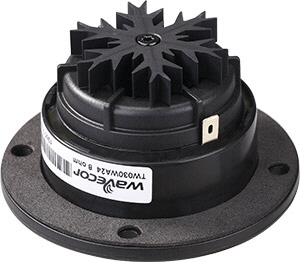

- Rear heat sink for increased long term power handling
- Vented voice coil former for reduced distortion and compression
- Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
- Built-in cavities under dome/edge to equalize pressure - for lower distortion and lower resonance frequency
- Flexible lead wires for higher power handling and larger excursion
- Gold plated terminals to prevent oxidation and ensure long-term reliable connection
- Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing
|
|
|
|
|
|
|
|
|
|
FREQUENCY RESPONSE
|
|
|
|
|
|
|
|
|
|
|
|
|
Downloads
SPL and impedance response curves as text files
|
|
|
|

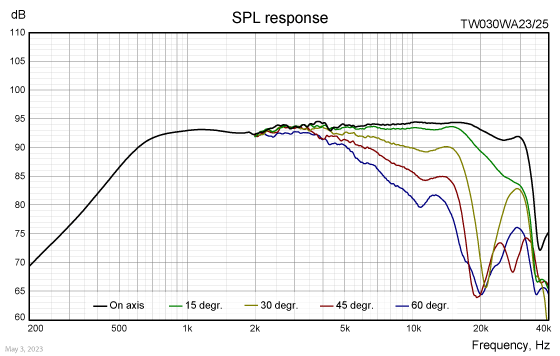

TW030WA23/25 on-axis SPL response
|
|

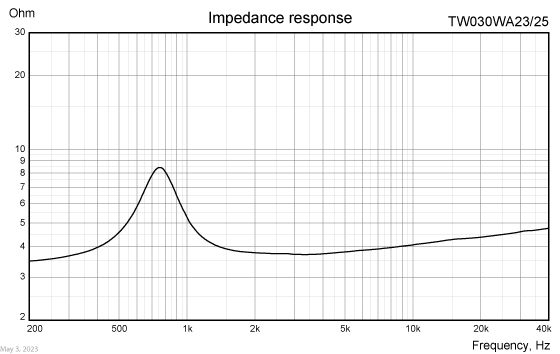

TW030WA23/25 impedance response
|
|
|
TW030WA24/26 on-axis SPL response
|
|

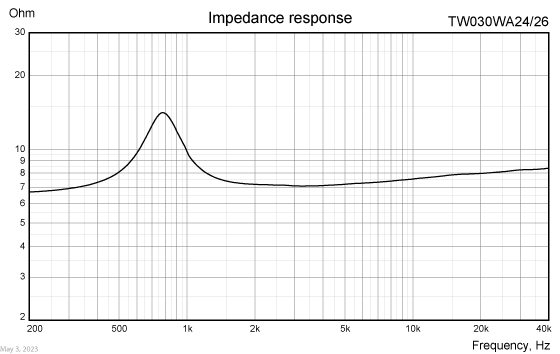

TW030WA24/26 impedance response
|
|
|
|
|
Important!
Please observe that these text files for download are actual measurements of the drivers measured in infinite baffle and without any enclosure. Measuring the drivers in a finite baffle (like the baffle of most speaker cabinets) and in any size of enclosure will lead to different response curves.
|
|
|
|
|
|
NOMINAL SPECIFICATIONS
|
|
|
|
|
|
Notes
|
Parameter
|
TW030WA23
TW030WA25
|
TW030WA24
TW030WA26
|
Unit
|
|
|
Nominal size
|
30
|
30
|
[mm]
|
|
|
Nominal impedance
|
4
|
8
|
[ohm]
|
|
|
Recommended frequency range
|
2 - 30
|
2 - 30
|
[kHz]
|
|
1, 4
|
Sensitivity, 2.83V/1m (average SPL in range 2 - 20 kHz)
|
94
|
91.5
|
[dB]
|
|
2
|
Power handling, short term, IEC 268-5, 2.5 kHz@12dB/oct.
|
1,000
|
1,000
|
[W]
|
|
2
|
Power handling, long term, IEC 268-5, 2.5 kHz@12dB/oct.
|
145
|
145
|
[W]
|
|
2
|
Power handling, continuous, IEC 268-5, 2.5 kHz@12dB/oct.
|
50
|
50
|
[W]
|
|
|
Effective radiating area, Sd
|
11.5
|
11.5
|
[sq.cm]
|
|
3, 4, 6
|
Resonance frequency (free air, no baffle), Fs
|
750
|
775
|
[Hz]
|
|
|
Moving mass, incl. air (free air, no baffle), Mms
|
0.43
|
0.40
|
[g]
|
|
3
|
Force factor, Bxl
|
2.0
|
2.3
|
[N/A]
|
|
3, 4, 6
|
Suspension compliance, Cms
|
0.106
|
0.106
|
[mm/N]
|
|
3, 4, 6
|
Equivalent air volume, Vas
|
20
|
20
|
[mlit.]
|
|
3, 4, 6
|
Mechanical resistance, Rms
|
0.72
|
0.73
|
[Ns/m]
|
|
3, 4, 6
|
Mechanical Q, Qms
|
2.8
|
2.7
|
[-]
|
|
3, 4, 6
|
Electrical Q, Qes
|
1.82
|
2.31
|
[-]
|
|
3, 4, 6
|
Total Q, Qts
|
1.10
|
1.24
|
[-]
|
|
4
|
Voice coil resistance, RDC
|
3.5
|
6.5
|
[ohm]
|
|
5
|
Voice coil inductance, Le (measured at 20 kHz)
|
|
|
[μH]
|
|
|
Voice coil inside diameter
|
30.4
|
30.4
|
[mm]
|
|
|
Voice coil winding height
|
1.7
|
1.7
|
[mm]
|
|
|
Air gap height
|
3.0
|
3.0
|
[mm]
|
|
|
Theoretical linear motor stroke, Xmax
|
+/-0.65
|
+/-0.65
|
[mm]
|
|
|
Magnet weight
|
23
|
23
|
[g]
|
|
|
Total unit net weight excl. packaging
|
135/120
|
135/120
|
[g]
|
|
3, 4, 5
|
Krm
|
|
|
[mohm]
|
|
3, 4, 5
|
Erm
|
|
|
[-]
|
|
3, 4, 5
|
Kxm
|
|
|
[mH]
|
|
3, 4, 5
|
Exm
|
|
|
[-]
|
|
|
|
|
|
Note 1
|
Measured in infinite baffle.
|
|
Note 2
|
Tested in free air (no cabinet).
|
|
Note 3
|
Measured using a semi-constant current source, nominal level 2 mA.
|
|
Note 4
|
Measured at 25 deg. C
|
|
Note 5
|
It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.
|
|
Note 6
|
Measured before burn in
|
|
|
|
|

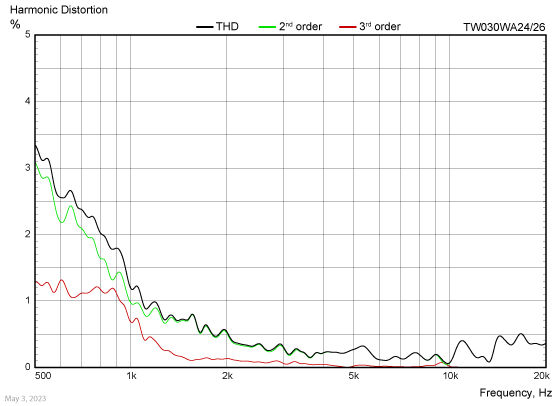

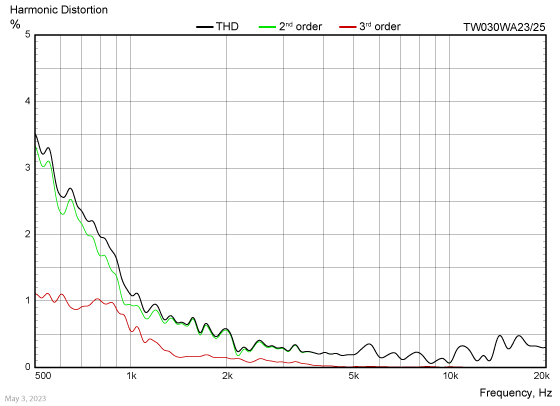

HARMONIC DISTORTION
|
|
|
|

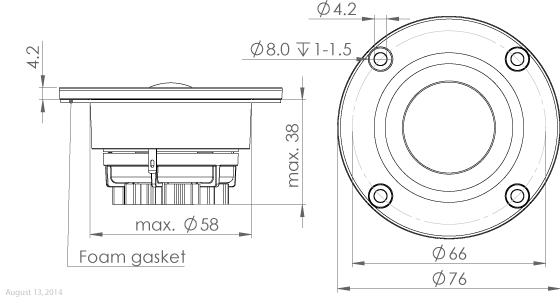

OUTLINE DRAWING AND NOMINAL DIMENSIONS (mm)
|
|
|
|
|
|

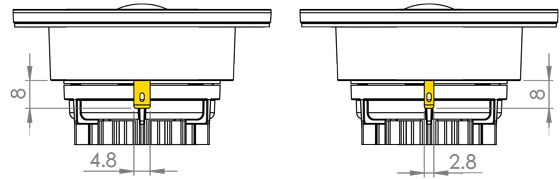

TERMINAL NOMINAL DIMENSIONS (mm)
|
|
|
|
|
Part no. TW030WA23-01
|
4 ohm version, incl. face plate, dual packaging (one pair per box)
|
|
Part no. TW030WA23-02
|
4 ohm version, incl. face plate, bulk packaging
|
|
Part no. TW030WA24-01
|
8 ohm version, incl. face plate, dual packaging (one pair per box)
|
|
Part no. TW030WA24-02
|
8 ohm version, incl. face plate, bulk packaging
|
|
Part no. TW030WA25-01
|
4 ohm version, no face plate, dual packaging (one pair per box)
|
|
Part no. TW030WA25-02
|
4 ohm version, no face plate, bulk packaging
|
|
Part no. TW030WA26-01
|
8 ohm version, no face plate, dual packaging (one pair per box)
|
|
Part no. TW030WA26-02
|
8 ohm version, no face plate, bulk packaging
|
|
|
|
|
Latest update: October 5, 2023
|
|
|
|
|
|
|
|
Specifications are subject to change without any further notice.
Copyright © 2006-2023 by Wavecor Ltd., China. All rights reserved.
|
|
|
|
|
|
MORE INFO
|
|
|
|
|
 PDF data sheet
|
|
|
|
|
|
 TW030WA23/24 test in Voice Coil Magazine
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
