Downloads SPL and impedance response curves as text files
|
|
|

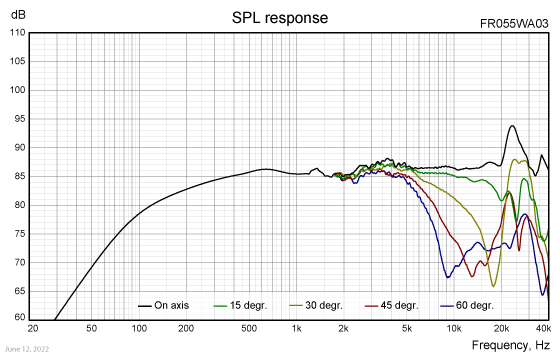

FR055WA03 on-axis SPL response
|
|

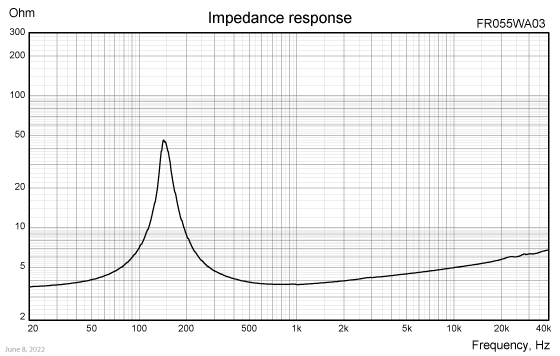

FR055WA03 impedance response
|
|

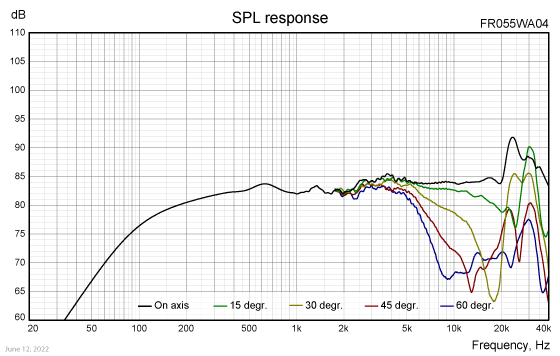

FR055WA04 on-axis SPL response
|
|

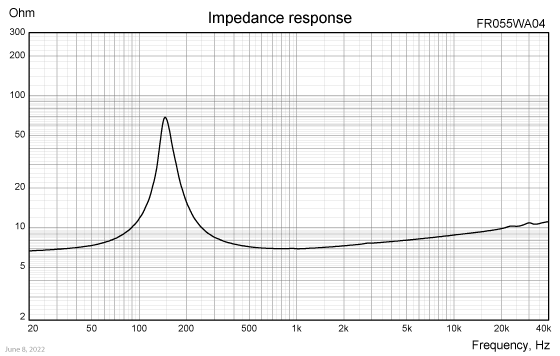

FR055WA04 impedance response
|
|
|
|
|
Important! Please observe that these text files for download are actual measurements of the drivers measured in infinite baffle and without any enclosure. Measuring the drivers in a finite baffle (like the baffle of most speaker cabinets) and in any size of enclosure will lead to different response curves.
|
|
|
|
|
|
FEATURES
|
|
|
|
- True full-range design with on-axis output beyond 20kHz
- Upgraded design with higher efficiency and improved high frequency output
- Dual neodymium magnet structure for high efficiency and almost ideal magnetical shielding
- Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
- Black anodized alu cone for better heat transfer
- Vented polymer chassis for lower air flow speed reducing audible distortion
- Vented voice coil former for reduced distortion and compression
- Heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
- Large motor with 22 mm voice coil diameter for better control and power handling
- Low-loss suspension (high Qm) for better reproduction of details and dynamics
- Black motor parts for better heat transfer to the surrounding air
- Conex spider for better durability under extreme conditions
- Gold plated terminals to ensure long-term trouble free connection
|
|
|
|
NOMINAL SPECIFICATIONS
|
|
|
|
Notes
|
Parameter
|
FR055WA03
|
FR055WA04
|
Unit
|
Before burn-in
|
After burn-in
|
Before burn-in
|
After burn-in
|
|
Nominal size
|
2
|
2
|
[inch.]
|
|
Nominal impedance
|
4
|
8
|
[ohm]
|
|
Recommended max. upper frequency limit
|
full range
|
full range
|
[kHz]
|
1, 4
|
Sensitivity, 2.83V/1m (average SPL in range 200 - 20,000 Hz)
|
86.5
|
83
|
[dB]
|
2, 4
|
Power handling, short term, IEC 268-5, no additional filtering
|
40
|
40
|
[W]
|
2, 4
|
Power handling, long term, IEC 268-5, no additional filtering
|
20
|
20
|
[W]
|
2
|
Power handling, continuous, IEC 268-5, no additional filtering
|
4
|
4
|
[W]
|
|
Effective radiating area, Sd
|
15.6
|
15.6
|
[sq.cm]
|
3, 4, 6
|
Resonance frequency (free air, no baffle), Fs
|
142
|
128
|
145
|
131
|
[Hz]
|
|
Moving mass, incl. air (free air, no baffle), Mms
|
1.6
|
1.54
|
[g]
|
3, 4
|
Force factor, Bxl
|
2.7
|
3.3
|
[N/A]
|
3, 4, 6
|
Suspension compliance, Cms
|
0.785
|
0.96
|
0.785
|
0.96
|
[mm/N]
|
3, 4, 6
|
Equivalent air volume, Vas
|
0.27
|
0.33
|
0.27
|
0.33
|
[lit.]
|
3, 4, 6
|
Mechanical resistance, Rms
|
0.16
|
0.16
|
0.16
|
0.16
|
[Ns/m]
|
3, 4, 6
|
Mechanical Q, Qms
|
8.9
|
8.1
|
8.8
|
7.9
|
[-]
|
3, 4, 6
|
Electrical Q, Qes
|
0.61
|
0.55
|
0.80
|
0.70
|
[-]
|
3, 4, 6
|
Total Q, Qts
|
0.57
|
0.51
|
0.73
|
0.66
|
[-]
|
4
|
Voice coil resistance, RDC
|
3.1
|
6.2
|
[ohm]
|
5
|
Voice coil inductance, Le (measured at 10 kHz)
|
0.062
|
0.10
|
[mH]
|
|
Voice coil inside diameter
|
22
|
22
|
[mm]
|
|
Voice coil winding height
|
4.7
|
4.7
|
[mm]
|
|
Air gap height
|
2.0
|
2.0
|
[mm]
|
|
Theoretical linear motor stroke, Xmax
|
+/-1.35
|
+/-1.35
|
[mm]
|
|
Magnet weight
|
27
|
27
|
[g]
|
|
Total unit net weight excl. packaging
|
0.083
|
0.083
|
[kg]
|
3, 4, 5
|
Krm
|
|
|
[mohm]
|
3, 4, 5
|
Erm
|
|
|
[-]
|
3, 4, 5
|
Kxm
|
|
|
[mH]
|
3, 4, 5
|
Exm
|
|
|
[-]
|
|
|
|
|
Note 1
|
Measured in infinite baffle.
|
Note 2
|
Tested in free air (no cabinet).
|
Note 3
|
Measured using a semi-constant current source, nominal level 2 mA.
|
Note 4
|
Measured at 25 deg. C
|
Note 5
|
It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.
|
Note 6
|
After-burn-in specifications are measured 12 hours after exiting the transducer by a continuous sine wave for 2 hours. The sine wave frequency equals the transducer Fs, at level 3.0/4.65 VRMS (4/8 ohm version). Units are not burned in before shipping.
|
|
|
|
|
FREQUENCY RESPONSE
|
|
|
|

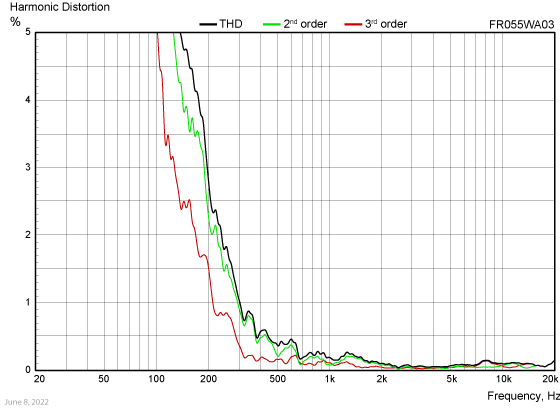

HARMONIC DISTORTION
|
|
|
|

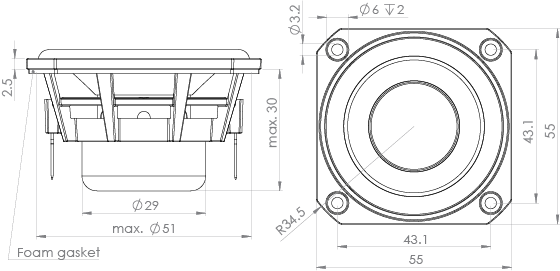

OUTLINE DRAWING AND NOMINAL DIMENSIONS (mm)
|
|
|
|
|
|
Part no. FR055WA03-01
|
4 ohm version, packed in pairs
|
Part no. FR055WA03-02
|
4 ohm version, packed in bulk (industrial) packaging
|
Part no. FR055WA04-01
|
8 ohm version, packed in pairs
|
Part no. FR055WA04-02
|
8 ohm version, packed in bulk (industrial) packaging
|
|
|
|
|
Latest update: June 12, 2022
|
|
|
|
|
|
Specifications are subject to change without any further notice. Copyright © 2006-2022 by Wavecor Ltd., China. All rights reserved.
|
|
|
|
|
|
