SW312WA03/04/05/06   12¼” alu-cone subwoofer, 4/8 ohm









SW312WA03 and SW312WA04 are woofers designed for dedicated sub bass applications. They work equally well for high-end hi-fi, high quality home theater systems, and top multimedia setups.
The extremely stiff aluminium cone, the long linear throw, exaggerated ventilation, and the special dynamic linearization short circuiting rings together make up for an unusually linear and low-distortion woofer. Even at very high signal levels, the unit behaves controlled and without distortion.
Due to low mechanical losses SW312WA03 and SW312WA04 master equally well low level details and extreme dynamic peaks.
Both models are available with black anodized alu cones as SW312WA05 (4 ohm) and SW312WA06 (8 ohm)

             REPLACEMENTS
SW312WA03 and SW312WA04 have replaced the previous models SW310WA01 and SW310WA02.
For more info please follow this link

Frequency resp.
Specifications
Dimensions
Ordering info

FEATURES

SW312WA03_04_front

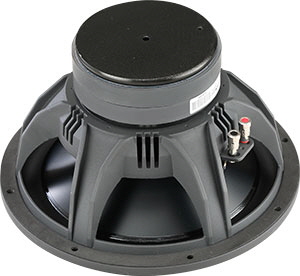

SW312WA05/06 (black cone)

  • Extremely rigid aluminium cone to ensure piston motion at high levels and for better heat transfer at high continuous power levels
  • New reinforced die cast alu chassis with optimal ventilation and increased stroke
  • Venting through holes in cone neck for reduced distortion and compression
  • Vented chassis for lower air flow speed reducing audible distortion
  • Two internally built-in alu rings for stabilizing the magnetic field leading to lower high-level distortion
  • Heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor system with 2” voice coil diameter and 145 mm magnet for better control and efficiency
  • Black-anodized magnet structure steel parts for increased heat dissipation and power handling
  • Long linear stroke motor for reduced distortion at high levels
  • Linear suspension with specially designed CONEX damper (spider) for long durability under extreme operating conditions
  • 4-layer voice coil for increased control and better small-cabinet performance

FREQUENCY RESPONSE SW312WA03/05

SW312WA03-SPL-response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS stepped sine wave
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

SW312WA03-impedance-respons

FREQUENCY RESPONSE SW312WA04/06

SW312WA04-SPL-response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS stepped sine wave
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

SW312WA04-impedance-respons

NOMINAL SPECIFICATIONS

Notes

  Parameter

SW312WA03
SW312WA05

SW312WA04
SW312WA06

Unit

Before burn-in

After burn-in

Before burn-in

After burn-in



Nominal size

12.25

12.25

[inch.]



Nominal impedance

4

8

[ohm]



Recommended max. upper frequency limit

300

300

[Hz]

1, 3

Sensitivity, 2.83V/1m (calculated from T/S parameters)

90

87

[dB]

2

Power handling, short term, IEC 268-5, no additional filtering





[W]

2

Power handling, long term, IEC 268-5, no additional filtering





[W]

2

Power handling, continuous, IEC 268-5, no additional filtering

250

250

[W]



Effective radiating area, Sd

488

488

[sq.cm]

3, 6

Resonance frequency (free air, no baffle), Fs

28



29



[Hz]



Moving mass, incl. air (free air, no baffle), Mms

185

172

[g]

3

Force factor, Bxl

14.5

18.4

[N/A]

3, 6

Suspension compliance, Cms

0.18



0.18



[mm/N]

3, 6

Equivalent air volume, Vas

61



61



[lit.]

3, 6

Mechanical resistance, Rms

2.8



2.8



[Ns/m]

3, 6

Mechanical Q, Qms

11.5



11.0



[-]

3, 6

Electrical Q, Qes

0.50



0.60



[-]

3, 6

Total Q, Qts

0.48



0.57



[-]

4

Voice coil resistance, RDC

3.2

6.6

[ohm]

5

Voice coil inductance, Le (measured at 1 kHz)

1.55

2.5

[mH]



Voice coil inside diameter

51

51

[mm]



Voice coil winding height

31

31

[mm]



Air gap height

8

8

[mm]



Theoretical linear motor stroke, Xmax

+/-11.5

+/-11.5

[mm]



Magnet weight

2.7

2.7

[g]



Total unit net weight excl. packaging

6.5

6.5

[kg]

3, 5

Krm

10.4

12.8

[mohm]

3, 5

Erm

0.70

0.72

[-]

3, 5

Kxm

11.3

18.7

[mH]

3, 5

Exm

0.75

0.74

[-]

Note 1

Measured in infinite baffle.

Note 2

Tested in free air (no cabinet).

Note 3

Measured using a semi-constant current source, nominal level 2 mA.

Note 4

Measured at 20 deg. C

Note 5





It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.

Note 6



After burn-in specifications are measured 12 hours after exciting the transducer by a 20 Hz sine wave for 2 hours at level 10/14.1 VRMS (4/8 ohm version). The unit is not burned in before shipping.


HARMONIC DISTORTION

SW312WA03-harmonic-distortion

Measuring conditions, harmonic distortion
Driver mounting: In sealed, heavily stuffed enclosure, internal volume 46 lit.
Microphone distance: 0.5 m
Input signal: Stepped sine wave, 10 VRMS
Smoothing: 1/12 oct.

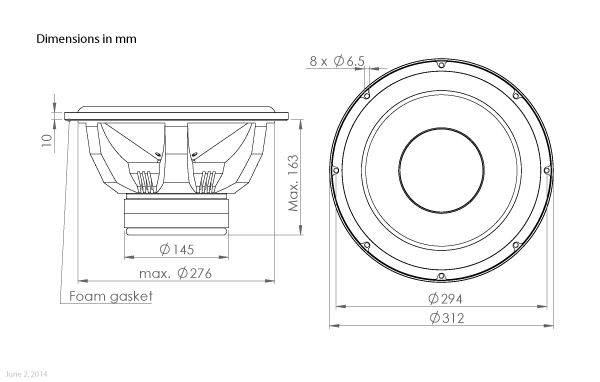

OUTLINE DRAWING AND NOMINAL DIMENSIONS

SW312WA03/04/05/06 outline drawing PDF
SW312WA03_04-outline-DWG

TERMINAL NOMINAL DIMENSIONS (mm)

SW263WA01_03_terminals

PACKAGING AND ORDERING INFORMATION

Part no. SW312WA03-01

4 ohm version, alu colour cone, individual packaging (one piece per box)

Part no. SW312WA04-01

8 ohm version, alu colour cone, individual packaging (one piece per box)

Part no. SW312WA05-01

4 ohm version, black cone, individual packaging (one piece per box)

Part no. SW312WA06-01

8 ohm version, black cone, individual packaging (one piece per box)

Latest update: August 8, 2022



Specifications are subject to change without any further notice.
Copyright © by Wavecor Ltd., China. All rights reserved.
