WF166TU02  6" die cast car woofer, 4 ohm

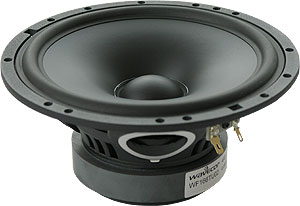

WF166TU02 car mid/wooferWF166TU02 is a mid/woofer designed for demanding bass and midrange applications. It works equally well for most applications but is designed especially for automotive high-end sound. The very rigid die cast alu chassis follows the common standard dimensions for easy installation in cars
WF166TU02 is powered by a large 90 mm  magnet structure that ensures good efficiency and optimized T/S parameters.
The large 32 mm voice coil ensures high power handling - thermally and mechanically
The optimized paper cone ensures wide

Frequency resp.
Specifications
Dimensions
Waterfall plot
Ordering info

bandwidth and low distortion. Distortion is further reduced by efficient venting and a separate alu field-stabilizing ring.
WF166TU02 is a good choice for 2-way car speaker systems.

FEATURES

  • Very rigid die cast alu chassis
  • Built-in alu field stabilizing ring for reduced high-level distortion
  • Vented voice coil former for reduced distortion and compression
  • Vented chassis for lower air flow speed reducing audible distortion
  • Heavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor system with 1” voice coil diameter and large 90 mm magnet for better control and efficiency
  • Linear suspension with specially designed CONEX damper (spider) for long durability under extreme operating conditions
  • Gold plated terminals to prevent oxidation for long-term reliable connection - important in a car environment

FREQUENCY RESPONSE

WF166TU02-SPL-IMP-respons

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open  (no cabinet)
Microphone distance: 1.0 m
Input level: 2.83 VRMS
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Semi-current-drive,
     nominal current 2 mA
Smoothing: None

NOMINAL SPECIFICATIONS

Notes

  Parameter

Before burn-in

 After  burn-in

Unit



Nominal size

6

[inch.]



Nominal impedance

4

[ohm]



Recommended max. upper frequency limit

3.5

[kHz]

1, 5

Sensitivity, 2.83V/1m (average SPL in range 200 - 2,000 Hz)

91

[dB]

2

Power handling, short term, IEC 268-5, no additional filtering



[W]

2

Power handling, long term, IEC 268-5, no additional filtering



[W]

2

Power handling, continuous, IEC 268-5, no additional filtering

60

[W]



Effective radiating area, Sd

139

[sq.cm]

3, 5, 7

Resonance frequency (free air, no baffle), Fs

50



[Hz]



Moving mass, incl. air (free air, no baffle), Mms

12.5

[g]

3

Force factor, Bxl

5.0

[N/A]

3, 5, 7

Suspension compliance, Cms

0.81



[mm/N]

3, 5, 7

Equivalent air volume, Vas

22.3



[lit.]

3, 5, 7

Mechanical resistance, Rms

0.40



[Ns/m]

3, 5, 7

Mechanical Q, Qms

9.8



[-]

3, 5, 7

Electrical Q, Qes

0.50



[-]

3, 5, 7

Total Q, Qts

0.48



[-]

4

Voice coil resistance, RDC

3.2

[ohm]

6

Voice coil inductance, Le (measured at 10 kHz)

0.23

[mH]



Voice coil inside diameter

32

[mm]



Voice coil winding height

11

[mm]



Air gap height

5

[mm]



Magnet weight

400

[g]



Total unit net weight excl. packaging

1.15

[kg]

3, 6

Krm

109

[μohm]

3, 6

Erm

0.97

[-]

3, 6

Kxm

2.04

[mH]

3, 6

Exm

0.79

[-]

Note 1

Measured in infinite baffle.

Note 2

Tested in free air (no cabinet).

Note 3

Measured using a semi-constant current source, nominal level 2 mA.

Note 4

Measured at 20 deg. C

Note 5

Measured at 25 deg. C

Note 6





It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.

Note 7



After burn-in specifications are measured at least 12 hours after exiting the transducer by a 20 Hz sine wave for 2 hours at level 10 VRMS. Unit are not burned in before shipping.


OUTLINE DRAWING AND NOMINAL DIMENSIONS (mm)

FR070WA01/02 outline drawing
WF166TU02-outline-drawing

TERMINAL NOMINAL DIMENSIONS (mm)

Terminals-dimensions

CUMULATIVE SPECTRAL DECAY PLOT

WF166TU02-waterfall-plot

PACKAGING INFORMATION

Part no. WF166TU02-01

Individual packaging (one piece per box)

Part no. WF166TU02-02

Bulk packaging

WF166TU02 CSD plot


Specifications are subject to change without any further notice.
