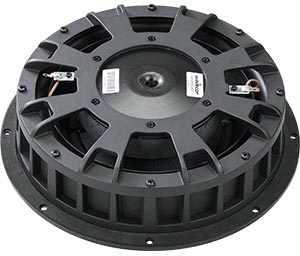

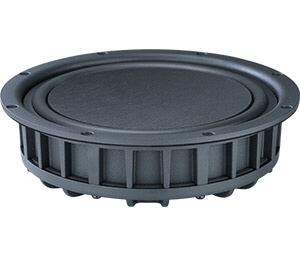

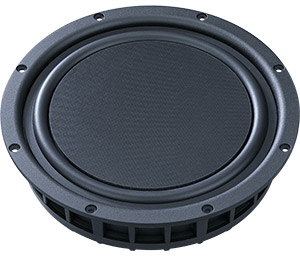

- Dual surround suspension and flat cone design to minimize build-in depth
- Glass fiber / PMI foam sandwich cone to maximize bending stiffness leading to improved freqiuency response
- Innovative dual cone design to allow magnet mounting “inside” the cone resulting in reduced overall depth
- Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
- Rigid die cast chassis with extensive venting for lower air flow speed, reducing audible distortion
- Vented center pole with dual flares for reduced noise level at large cone excursions
- Heavy-duty vented fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
- Built-in alu field-stabilizing ring for reduced distortion at high levels
- Low-loss suspension (high Qm) for better reproduction of details and dynamics
- Black plated motor parts for better heat transfer to the surrounding air
- Gold plated terminals to ensure long-term trouble free connection
- Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing
|
|
|
|
|
|
|
|
|
Downloads
SPL and impedance response curves as text files
|
|
|
|
SW280WA01 SPL response
|
|

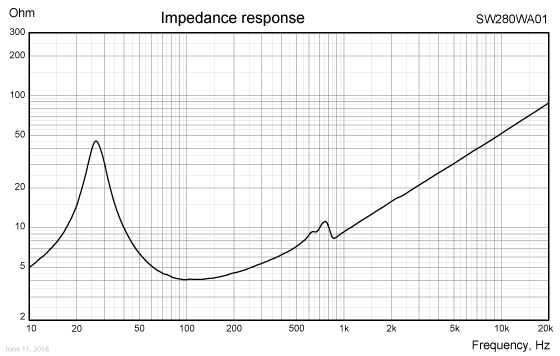

SW280WA01 impedance response
|
|
|

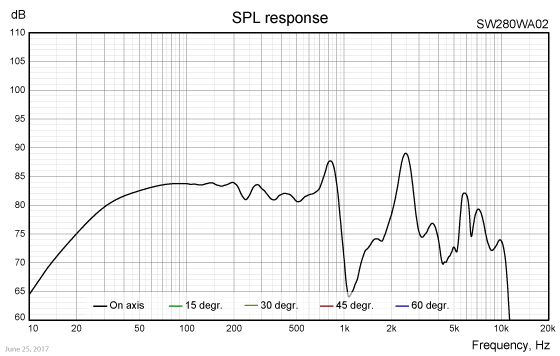

SW280WA02 SPL response
|
|

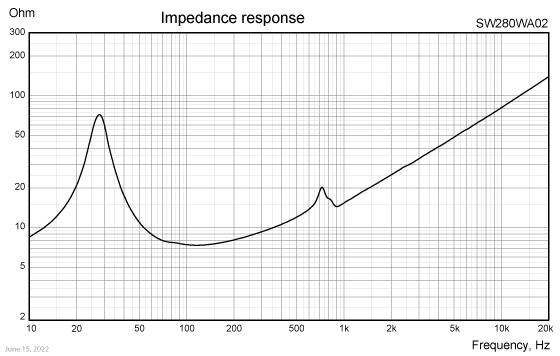

SW280WA02 impedance response
|
|
|
|
|
Important!
Please observe that these text files for download are actual measurements of the drivers measured in infinite baffle and without any enclosure. Measuring the drivers in a finite baffle (like the baffle of most speaker cabinets) and in any size of enclosure will lead to different response curves.
|
|
|
|
|
NOMINAL SPECIFICATIONS
|
|
|
|
|
|
Notes
|
Parameter
|
SW280WA01
|
SW280WA02
|
Unit
|
|
Before burn-in
|
After burn-in
|
Before burn-in
|
After burn-in
|
|
|
Nominal size
|
11
|
11
|
[inch.]
|
|
|
Nominal impedance
|
4
|
8
|
[ohm]
|
|
|
Recommended max. upper frequency limit
|
400
|
400
|
[Hz]
|
|
1, 4
|
Sensitivity, 2.83V/1m (calculated from T/S parameters)
|
86
|
83
|
[dB]
|
|
2, 4
|
Power handling, short term, IEC 268-5, no additional filtering
|
|
|
[W]
|
|
2, 4
|
Power handling, long term, IEC 268-5, no additional filtering
|
|
|
[W]
|
|
2
|
Power handling, continuous, IEC 268-5, no additional filtering
|
200
|
200
|
[W]
|
|
|
Effective radiating area, Sd
|
335
|
335
|
[sq.cm]
|
|
3, 4, 6
|
Resonance frequency (free air, no baffle), Fs
|
26.6
|
|
26.9
|
|
[Hz]
|
|
|
Moving mass, incl. air (free air, no baffle), Mms
|
137.6
|
134.2
|
[g]
|
|
3, 4
|
Force factor, Bxl
|
13.4
|
16.6
|
[N/A]
|
|
3, 4, 6
|
Suspension compliance, Cms
|
0.26
|
|
0.26
|
|
[mm/N]
|
|
3, 4, 6
|
Equivalent air volume, Vas
|
41.4
|
|
41.4
|
|
[lit.]
|
|
3, 4, 6
|
Mechanical resistance, Rms
|
3.7
|
|
3.7
|
|
[Ns/m]
|
|
3, 4, 6
|
Mechanical Q, Qms
|
6.2
|
|
6.1
|
|
[-]
|
|
3, 4, 6
|
Electrical Q, Qes
|
0.44
|
|
0.52
|
|
[-]
|
|
3, 4, 6
|
Total Q, Qts
|
0.41
|
|
0.48
|
|
[-]
|
|
4
|
Voice coil resistance, RDC
|
3.4
|
6.3
|
[ohm]
|
|
5
|
Voice coil inductance, Le (measured at 1 kHz)
|
1.4
|
|
[mH]
|
|
|
Voice coil inside diameter
|
39
|
39
|
[mm]
|
|
|
Voice coil winding height
|
17
|
17
|
[mm]
|
|
|
Air gap height
|
5
|
5
|
[mm]
|
|
|
Theoretical linear motor stroke, Xmax
|
+/-6
|
=/-6
|
[mm]
|
|
|
Magnet weight
|
|
|
[g]
|
|
|
Total unit net weight excl. packaging
|
|
|
[kg]
|
|
3, 4, 5
|
Krm
|
|
|
[mohm]
|
|
3, 4, 5
|
Erm
|
|
|
[-]
|
|
3, 4, 5
|
Kxm
|
|
|
[mH]
|
|
3, 4, 5
|
Exm
|
|
|
[-]
|
|
|
|
|
|
Note 1
|
Measured in infinite baffle.
|
|
Note 2
|
Tested in free air (no cabinet).
|
|
Note 3
|
Measured using a semi-constant current source, nominal level 2 mA.
|
|
Note 4
|
Measured at 25 deg. C
|
|
Note 5
|
It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm.
This more accurate transducer model is described in a technical paper (PDF) here.
|
|
Note 6
|
After burn-in specifications are measured 12 hours after exiting the transducer by a 20 Hz sine wave for 2 hours at level 10 VRMS. The unit is not burned in before shipping.
|
|
|
|
|

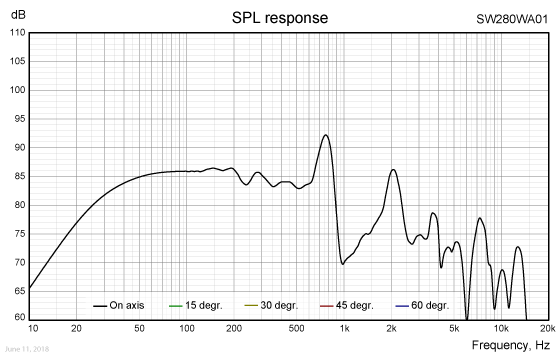

FREQUENCY RESPONSE
|
|
|
|

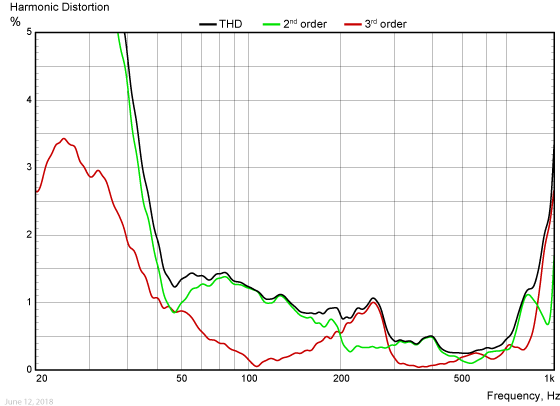

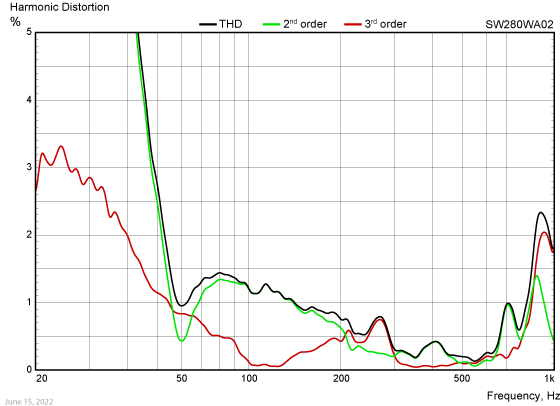

HARMONIC DISTORTION
|
|
|
|

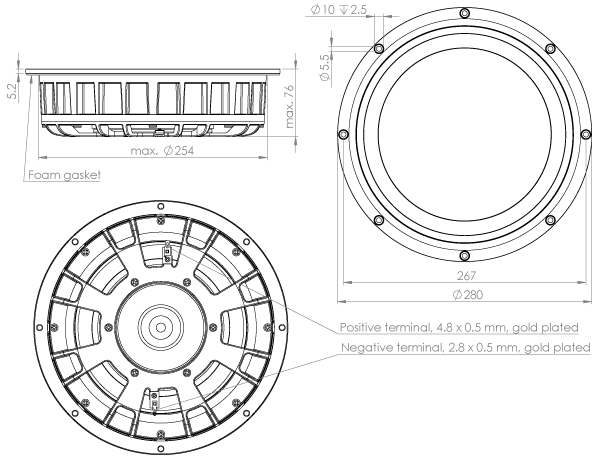

OUTLINE DRAWING AND NOMINAL DIMENSIONS
|
|
|
|
|
|
PACKAGING AND ORDERING INFORMATION
|
|
|
|
|
Part no. SW280WA01-01
|
4 ohm version, individual packaging (one piece per box)
|
|
Part no. SW280WA02-01
|
8 ohm version, individual packaging (one piece per box)
|
|
|
|
|
Latest update: August 15, 2022
|
|
|
|
|
|
|
|
Specifications are subject to change without any further notice.
Copyright © by Wavecor Ltd., China. All rights reserved.
|
|
|
